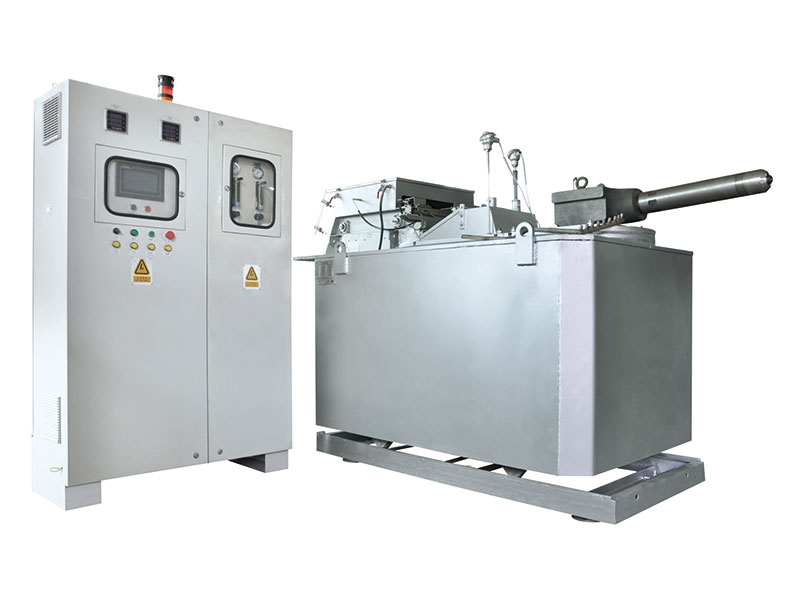

DMH hot chamber furnace
Structural system:
1) The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.
2) 1.2888 material manufacturing material pot and other spare parts, long service life
3) Using a radiant tube or other heating method, the heater can be quickly replaced
4) Stainless steel casing and panel, corrosion resistant, high temperature resistant
5) Imported thermocouple, accurate temperature control and high service life
6) Temperature control static ± 1 ° C, dynamic ± 3 ° C
7) Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding (patent: ZL201420137471.2)
8) Preheating machine has low energy consumption and good preheating effect
Details
Technical Parameters
Project type | Unit | DMH80 | DMH125 | DMH200 | DMH315 | DMH500 |
Furnace size | mm | 1200*650*1000 | 1450*850*1020 | 1600*900*1020 | 1650*900*1020 | 1650*900*1020 |
Rated capacity | Kg | 200 | 300 | 300 | 500 | 500 |
Melting rate | Kg/h | 80 | 120 | 120 | 220 | 220 |
Crucible structure | . | Signal room
| ||||
Power | 380-420V/50-60Hz/Three-phase Five-wire | |||||
Rated power | KW | 30 | 45 | 45 | 75 | 75 |
Rated current | A | 45 | 70 | 70 | 110 | 110 |
Highest Furnace work temperature | ℃ | 850
| ||||
Highest work temperature of magnesium liquid | ℃ | 710
| ||||
Gas supply temperature | ℃ | 350 | ||||
（max.） Protection gas flow(max.) | L/min | 10 | 10 | 10 | 25 | 25 |
Inside hole of material pot | mm | 55 | 65 | 70 | 80 | 85 |
DIN45635-01-K1.2 noise | dB(A) | ＜85
| ||||
Furnace weight | kg | 1200 | 1500 | 1600 | 2500 | 2500 |
Matching casting machine | T | 60-88 | 100-150 | 160-200 | 300-400 | 500-600 |
Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
